BEST 500C

BEST YACHT 500C Product Features

Exterior Design

The sleek hull design is sharp and elegant, perfectly balancing style and performance. Simple axe hull with distinctive style, enjoy smooth cruising with ease.

Interior Design - Warm Wood Style

The spacious master cabin is stylishly comfortable with an excellent headroom of 1.95 m. The large porthole design renders a relaxed atmosphere.

The kitchen is equipped with a refrigerator, induction cooker, range hood, sterilizer, and next to the L-shaped salon dining area, bringing the convenience of cooking and dining at home.

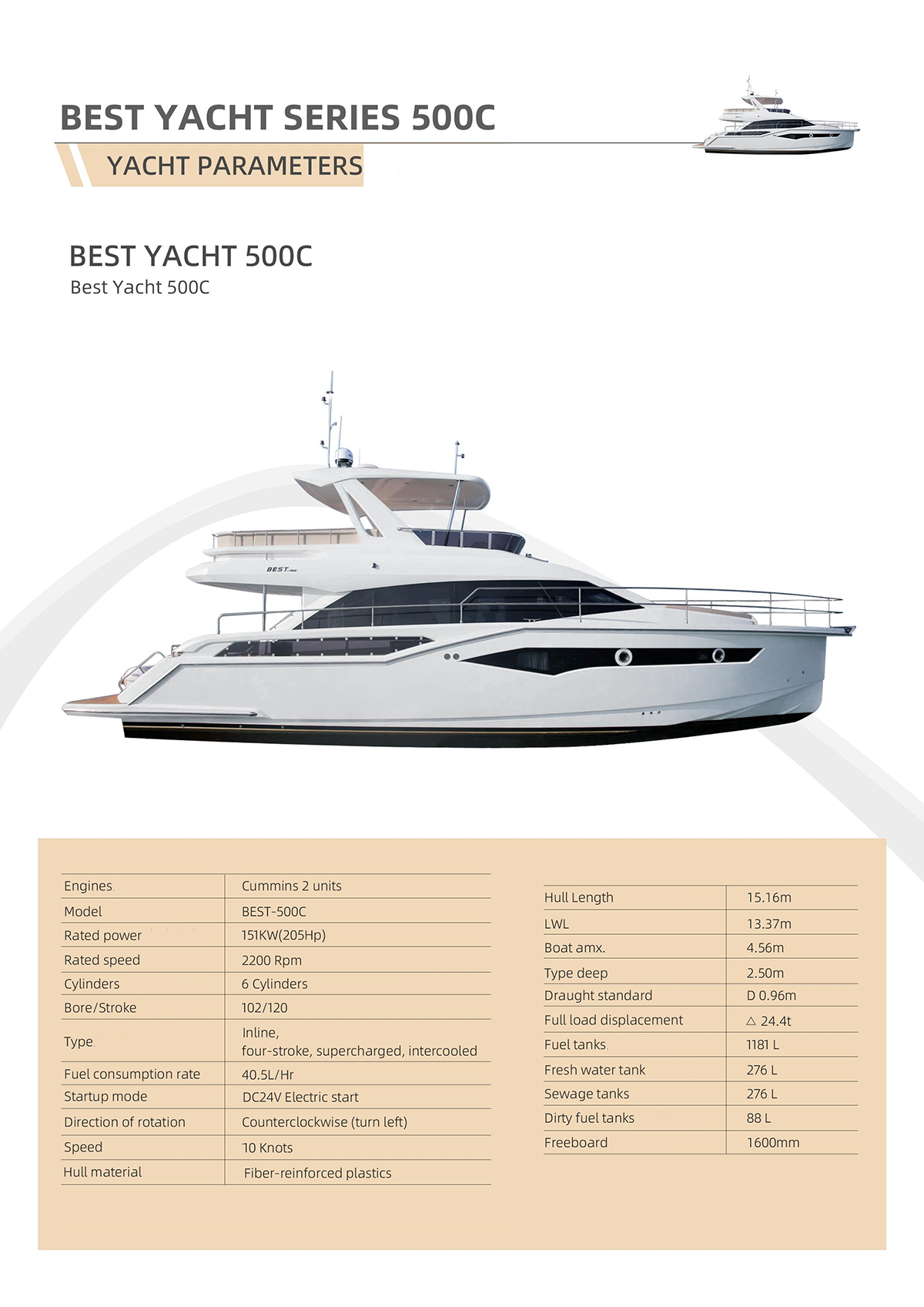

Yacht Parameters

Parameter	Specification
Engines	Cummins 2 units
Model	BEST-500C
Rated power	151KW (205Hp)
Rated speed	2200 Rpm
Cylinders	6 Cylinders
Fuel consumption rate	40.5L/Hr
Speed	10 Knots
Hull Length	15.16m
LWL	13.37m
Boat width	4.56m
Standard draught	0.96m
Full load displacement	24.4t
Fuel tanks	1181 L
Fresh water tank	276 L

Scientific Advancement

Engine Technology

The cylinder bore adopts the platform aniox grinding design, the perfect geometric structure effectively prevents oil leakage, and adopts advanced technology such as new piston ring assembly and gasket crimping molding to reduce oil loss.

Excellent cold start: equipped with an electric intake preheating device and a 6.6kW high-power starter, the cold start performance of the engine has been completely improved, and it has passed the -36°C extreme low temperature verification in Yimohe, Arctic Village, China.

Ouma Generator

High efficiency: OUMA generator adopts efficient combustion system and advanced electronic control technology, its fuel consumption rate is more than 30% lower than that of traditional generators.

Environmental protection: OUMA generator adopts low-emission technology, the emission is more than 50% lower than that of traditional generators.

Navigation Systems

Raymarine's leading product line of digital radar has high-definition, high-quality echoes, presented in high-resolution displays.

Garmin 9-inch Multifunction Chart: Experience wireless connectivity and app-friendly controls with the 9-inch GPSMAP922xs all-in-one multi-touch navigation system.

Structure

• Yacht navigation area category: CCSIII class, capacity 12 people
• Vacuum adsorption, hand-laid FRP process: hull, main deck, flybridge
• PVC sandwich panel structure
• Hull exterior vinyl resin
• Upholstery in the cabin combined with hardwood upholstery with matt lacquered surfaces
• Windows made of safety glass
• All exterior stainless steel fittings are polished 316
• Ship-wide air intake/exhaust system
• Hull gelcoat color: white
• Hull trim line: white
• Main Deck Gelcoat Color: White
• Flybridge gelcoat color: white
• Hard-top gelcoat color: white

Machinery and Equipment

• Engines: 2 Cummins engines
• Twin helm stations with complete engine operating equipment
• Hydraulic steering system Tryflex Sista
• Stainless steel tail axle with leak-proof device PSS SHAFT SEAL
• Fresh water pump/full ship hot and cold water system
• 5052 aluminium alloy fuel tank 2200 litres with visual scale with clean opening
• Stainless steel water tank
• Water heater 220V, 50L
• 3 automatic bilge pumps, 3000GPH
• 1 hand-cranked bilge pump, 500-H
• Wipers, 2 pcs
• Air conditioning seawater cooling system
• Ship-wide fire protection system

Electrical System

• 24V&220V electrical system with voltmeter and ampere meter
• Automatic battery charger 40A
• 8 pcs of 200A/H battery
• Shore power plug/socket Weipu/16m shore power wire
• Interior lighting 24V, LED warm white
• 220V system (with fault current cutoff)
• Anchor, mooring equipment, navigation equipment, magnetic compass, GPS all-in-one machine
• Radar and rudder angle indicators
• Automatic Identification System (AIS), Radiocommunication Equipment (VHF), 406MHz
• Yacht air conditioner, 220V, signaling equipment
• Basic configuration of communication and navigation system: Raymarine, GPS, nautical charts, VHF intercom
• Custom-made sound system, multi-purpose hall karaoke
• Fishfinder sonar system

Cabin

• Watertight cabin doors
• Cabin lighting
• 1 220V socket
• 316 stainless steel waste oil pan
• Non-slip aluminum plates in the cabin
• Comprehensive soundproofing structure
• 2 forced exhausts
• Stainless steel safety handrails in the cabin
• Battery switch

Stern Deck

• Stern deck ceiling
• Set of long backrest sofas on the aft deck
• Narcissus Gate

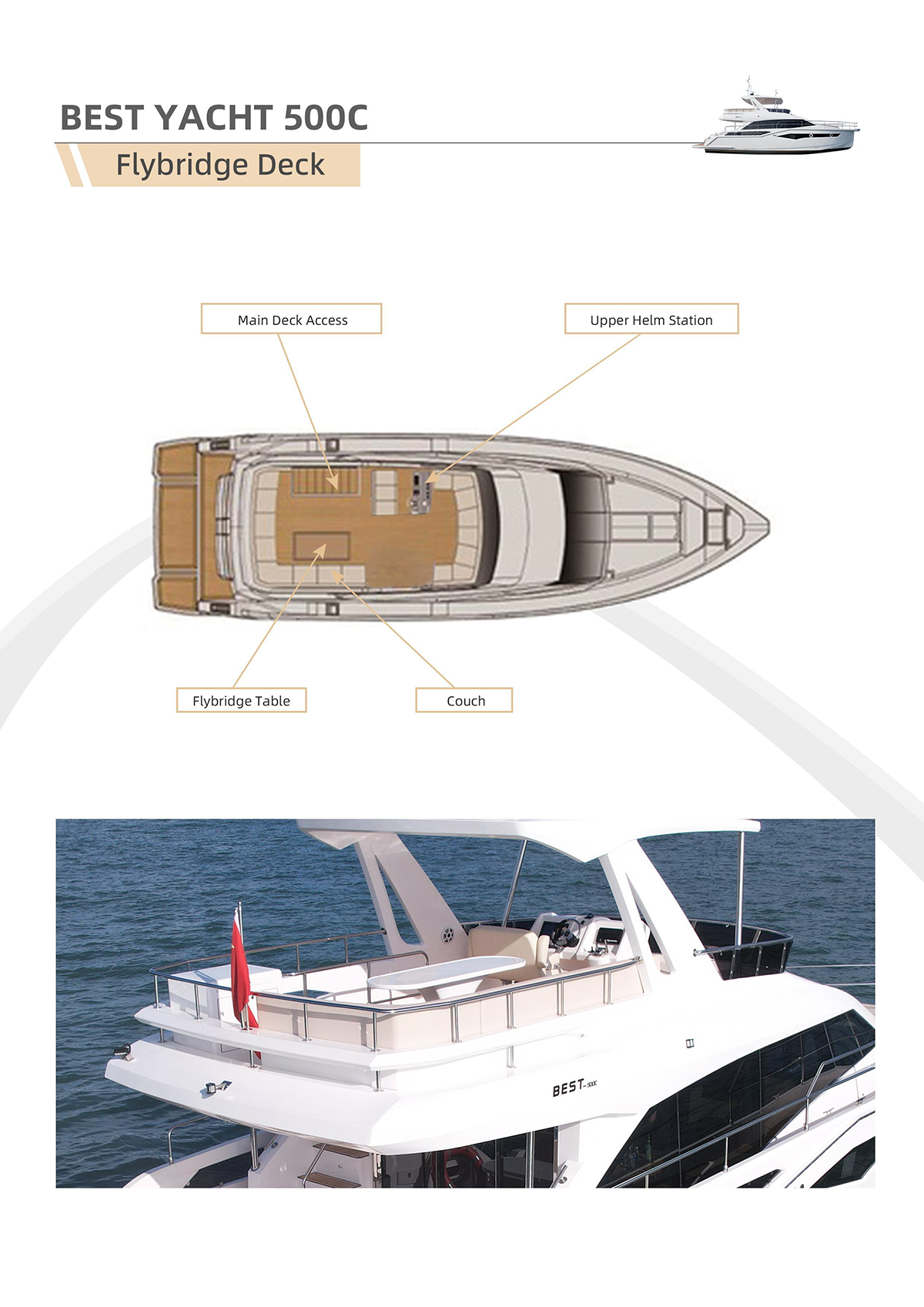

Flybridge Deck

• Outdoor helm station
• Steering wheel
• Single yacht helm seat
• Set of bar counters
• Set of sofas in the back
• 1 set of FRP dining table/coffee table
• Sink countertop cabinet
• Helm platform windshield
• Hatch cover from the piloting deck to the aft deck
• 1 searchlight
• 1 life raft, equipped with 12 people in Huayang HYF-U12
• 2 lifebuoys, ship lifesaving supplies
• 16 pieces of life jackets, ship lifesaving supplies

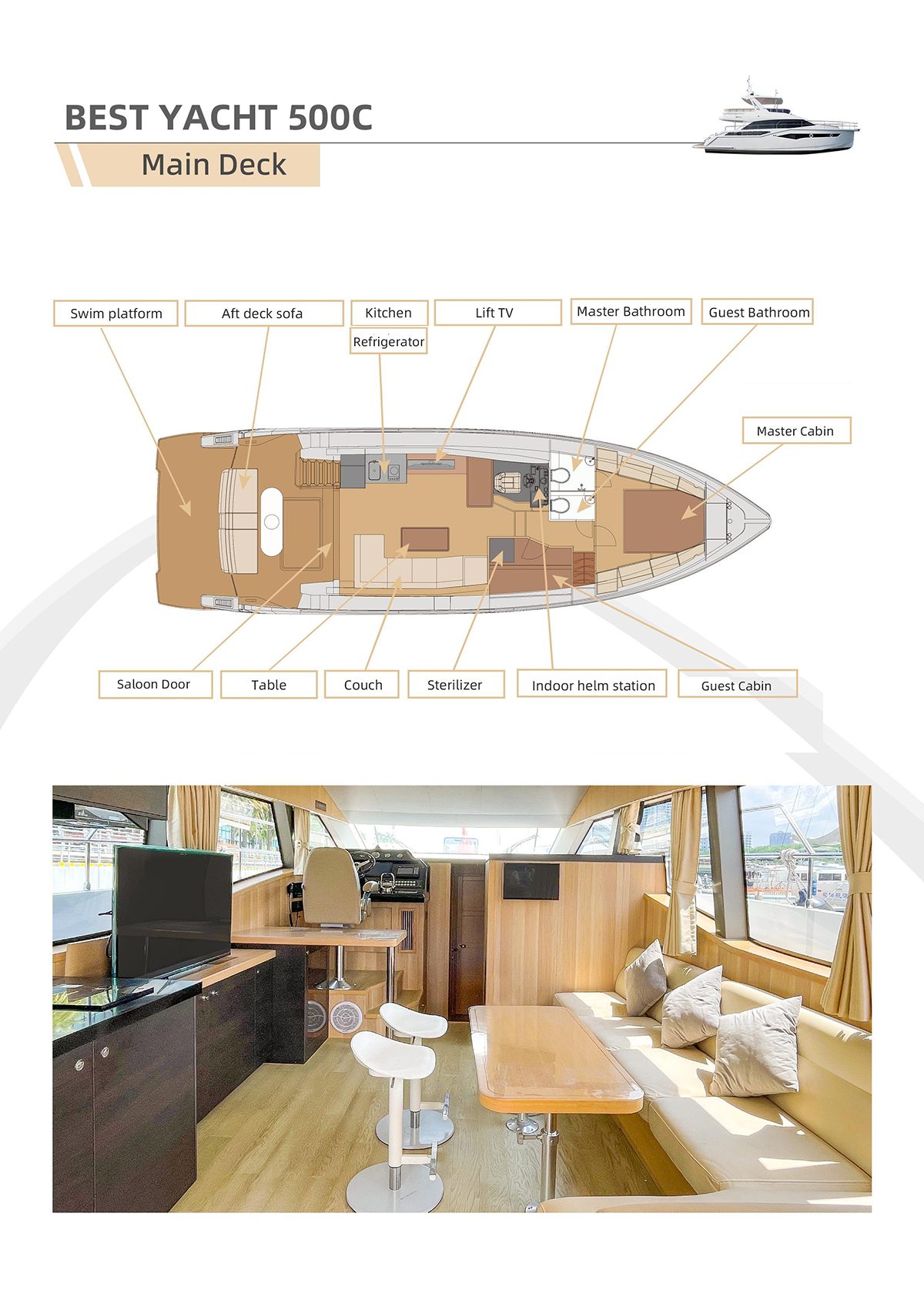

Main Deck

• Bow anchor chain guide trough (with 2 rollers)
• Electric windlass DC24V, 1500W
• Stainless steel anchor chain
• Square hatch cover
• Swim platform imitation teak flooring
• Aft deck imitation teak flooring
• Imitation teak flooring on the bow deck and side passages
• Diving platform, folding ladder

Saloon

• Sofa, coffee table
• Karaoke sound system
• Liftable LED 55" HDTV
• Bar counter
• Curtain
• Sharon helm station
• Dual-handle controller & engine control panel
• Switchboards
• Steering wheel
• Multifunctional helm seat

Bathroom

• Integral FRP forming structure
• Separate shower & electric toilet
• Shower faucets
• Lighting, LED dome lights
• Toilet accessories
• Mirrors & portholes
• Curtain

Kitchen

• Set of kitchen cabinets
• Induction cooker
• Refrigerator
• Stainless steel sink
• Sterilizer
• Kitchen hood

Master Bedroom

• Double bed/wardrobe
• Square escape window
• 2 portholes 200x
• Lighting, LED dome lights
• 1 220V socket
• 3 wardrobes

Guest Cabin

• Single bed
• 1 porthole 200x
• Lighting, LED dome lights
• 1x220V socket
• 1 wardrobe

Security & Other

• Stainless steel string guards
• Standard fire protection system
• Standard life-saving system
• User Manual
• Electric horn
• International Standard Navigation Light Aqua Signal
